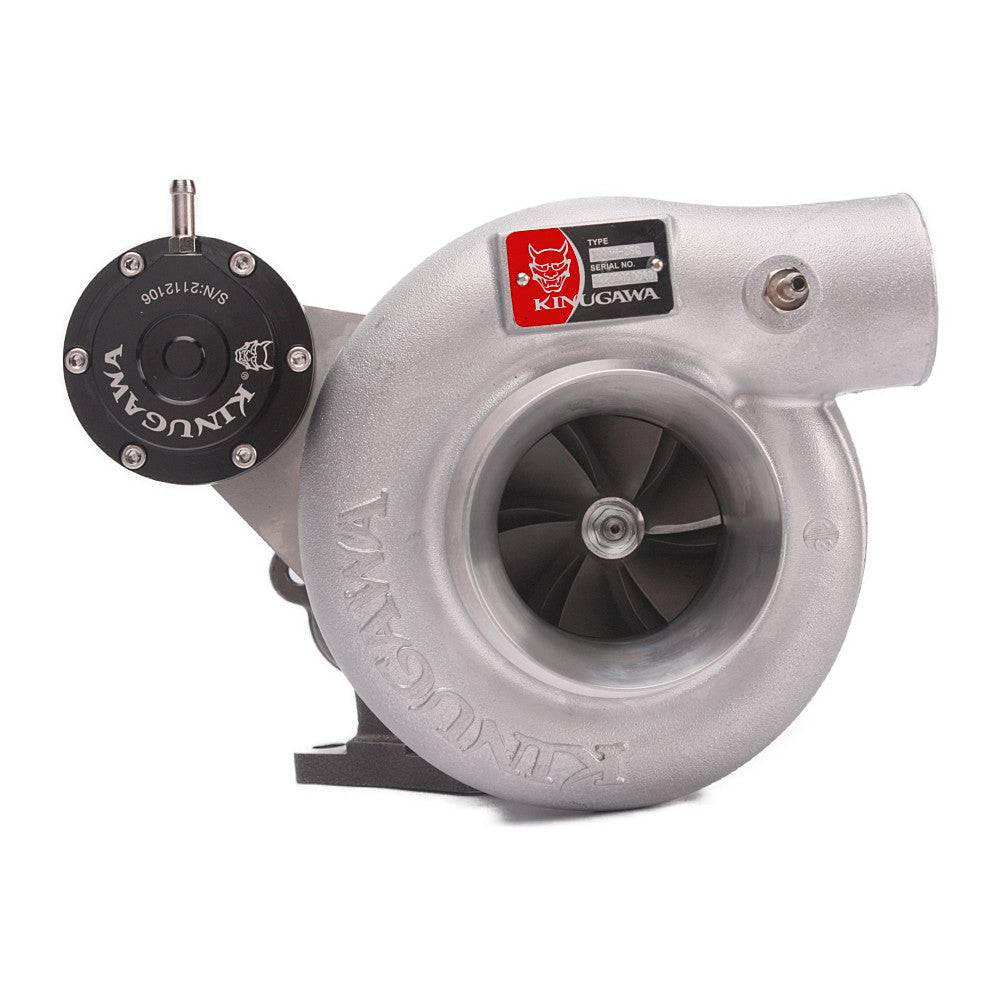

Kinugawa Turbo 3" TD05H-20G for Subaru Impreza WRX STi 2004-2020
Description
- Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the turbocharger. This is a great upgrade for those of you looking to make more power while maintaining a great low-range to mid-range response. It's not a bolt-on type, so you need to modify your intake pipes or horses to fit a 3" compressor inlet.
Application
- 2002-2014 Subaru WRX
- 2004-2020 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo.
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
-TD05H-20G
Wheels Spec
- Compressor wheel: 52.3 / 68 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" non anti-surge
- Outlet: 2"

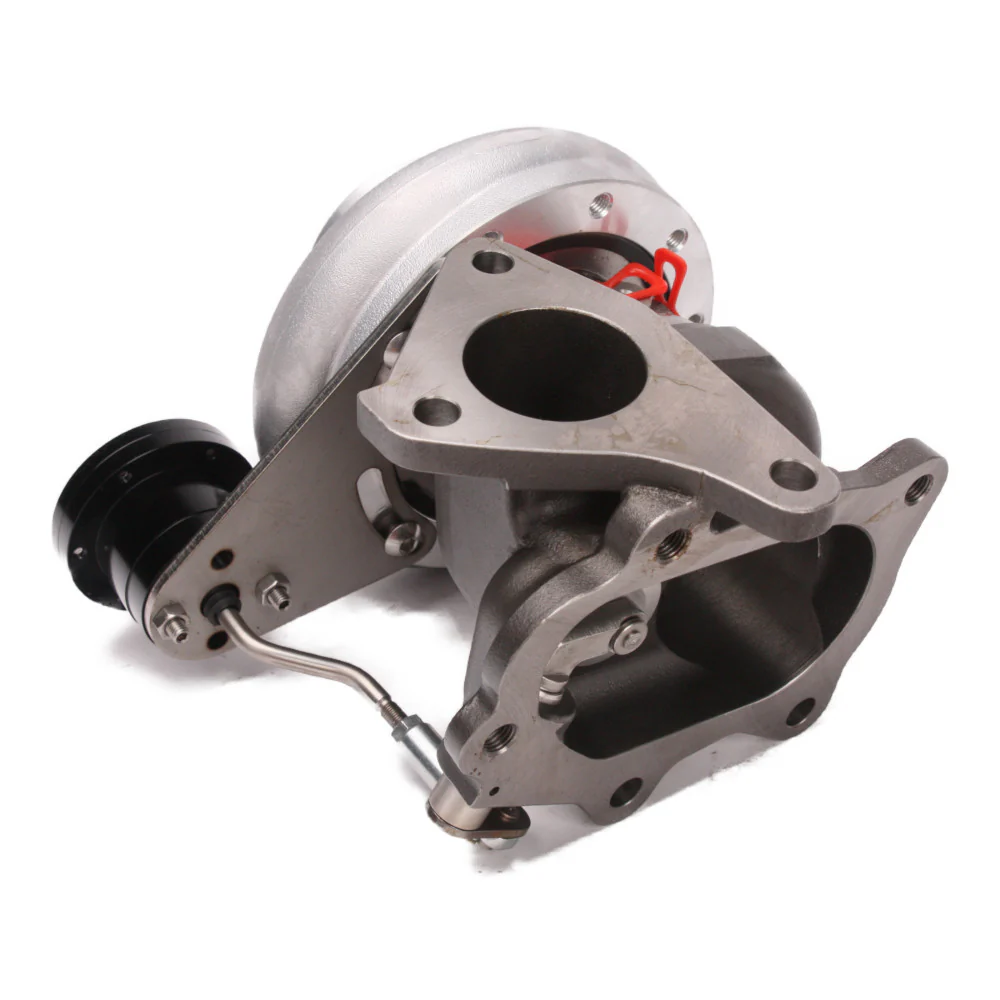

Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: 3" non anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- Journal Bearing Systems with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling system
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 9 x Stud And Nut Set
- 1 x Turbocharger
- 1 x Balance report with an anti-counterfeit tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
Select Turbine Housing
From $377.65
Original: $1,079.00
-65%Kinugawa Turbo 3" TD05H-20G for Subaru Impreza WRX STi 2004-2020—
$1,079.00
$377.65Product Information
