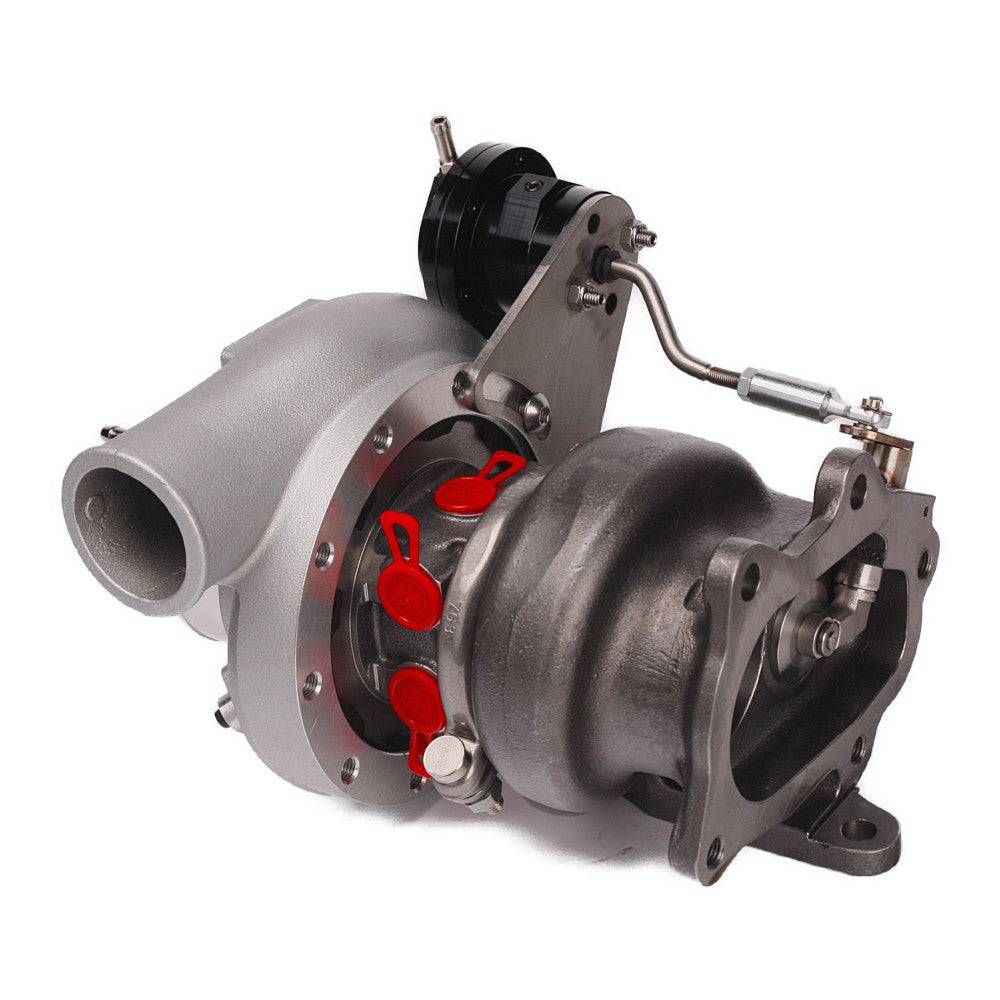

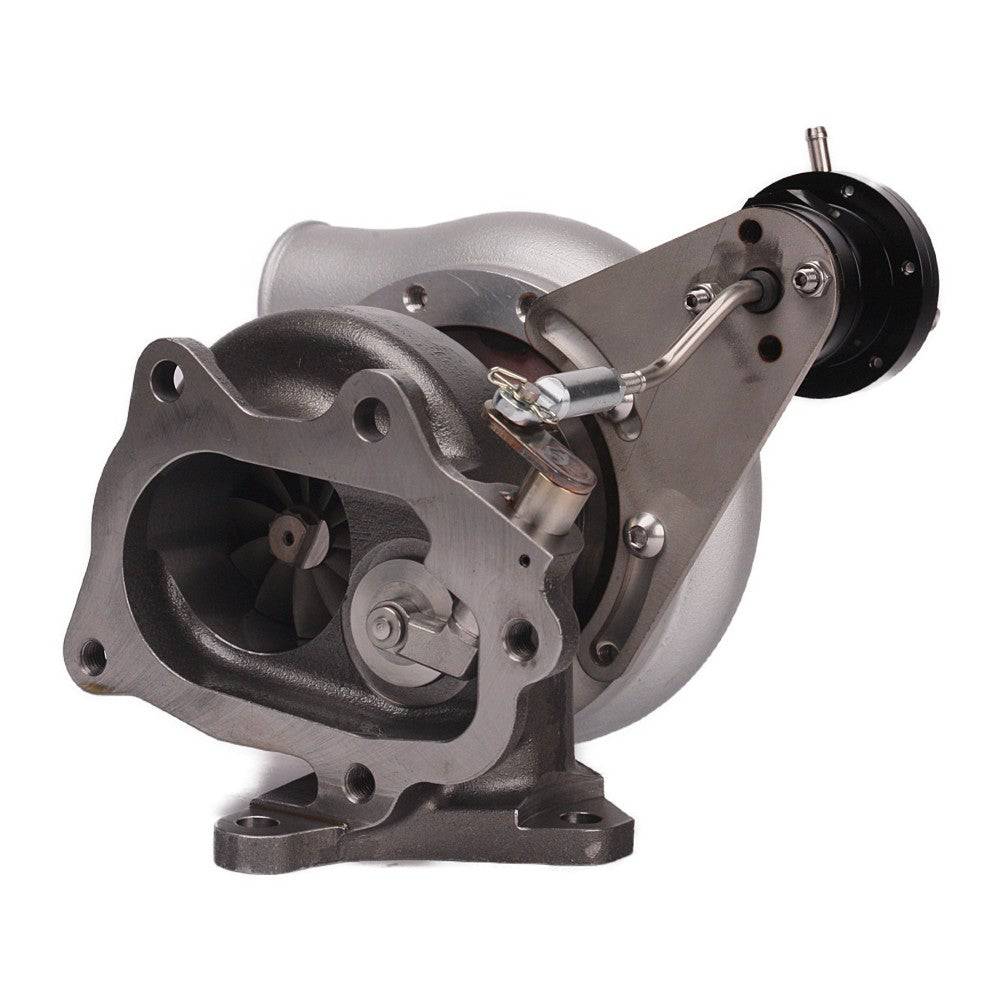

Kinugawa Turbo Ball Bearing 3" TD06SL2-20G for Subaru Impreza WRX STi 2004-2020
Description
- Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD06SL2-20G Turbocharger. This is a great upgrade for those looking to make more power while maintaining great mid-range to high-range response. It's not a bolt-on type, so you need to modify your intake pipes or horses to fit this 3" compressor inlet.
Application
- 2002-2007 Subaru WRX
- 2004-2020 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-20G
Wheels Spec
- Compressor wheel: 52.3 / 68 mm (the 6+6 blades for low-end torque and the 11+0 blades for top-end speed)
- Turbine wheel: 54 / 61 mm (9 blades STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: 3"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
