Kinugawa Turbo TD04HL-21H 6cm Straight Flange for VOLVO 850 S70 V70 S80 97-
Application
- The upgrade turbo for VOLVO 850/S60/S70/V70/XC70/C70/T5-R B5234/T3/T4/T6, B5254T/T2, N2P20FT, N2P20LT, N2P23FT, N2P23HT, N2P25LT with factory TD04HL-13G/15G/16T/18T and the adjustable-position plate compressor cover.
- Replace & Upgrade factory turbo #: 49189-01310, 49189-01320 (TD04HL-15G), 49189-01330, 49189-01335, 49189-01350, 49189-01355 (TD04HL-16T), 49189-01360, 49189-01365, (TD04HL-13G), 49189-01370, 49189-01375 (TD04HL-18T), 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435 (TD04HL-13T), 49189-01450, 49189-01455 (TD04HL-16T-6)
- 1998- Volvo S70 with N2P23FT Engine
- 1998- Volvo XC70 with B5254T Engine
- 1996- Volvo 850 with N2P23FT Engine
- Volvo S70, V70 T5, with B5234 Engine
- 1997- Volvo 850, C70 with N2P23HT Engine
- 1996- Volvo 850 Engine B5254T
- 1996- Volvo C70 I 2.4L T5 Engine B5254T
- 1996- Volvo S70 2.5L T5 Engine B5254T
- 1996- Volvo V70 2.5L T5 Engine B5254T
- 1998- Volvo S70, XC70 Car with B5254T2 Engine
- 1998- Volvo S60 T5, S70R, V70R with N2P23HTR Engine
- 2000- Volvo S60 with B2534 T4 Engine
- 1997- Volvo 850 T5 with N2P20FT Engine (49189-01400)
- 1996- Volvo 850 with N2P20FT, N2P20LT Engine (49189-01420)
- 1998~2005 Volvo C70 with B5204 T3 engine (49189-01450, 49189-01455)
- Replace & Upgrade factory turbo #: 49189-01310, 49189-01320 (TD04HL-15G), 49189-01330, 49189-01335, 49189-01350, 49189-01355 (TD04HL-16T), 49189-01360, 49189-01365, (TD04HL-13G), 49189-01370, 49189-01375 (TD04HL-18T), 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435 (TD04HL-13T), 49189-01450, 49189-01455 (TD04HL-16T-6)
- 1998- Volvo S70 with N2P23FT Engine
- 1998- Volvo XC70 with B5254T Engine
- 1996- Volvo 850 with N2P23FT Engine
- Volvo S70, V70 T5, with B5234 Engine
- 1997- Volvo 850, C70 with N2P23HT Engine
- 1996- Volvo 850 Engine B5254T
- 1996- Volvo C70 I 2.4L T5 Engine B5254T
- 1996- Volvo S70 2.5L T5 Engine B5254T
- 1996- Volvo V70 2.5L T5 Engine B5254T
- 1998- Volvo S70, XC70 Car with B5254T2 Engine
- 1998- Volvo S60 T5, S70R, V70R with N2P23HTR Engine
- 2000- Volvo S60 with B2534 T4 Engine
- 1997- Volvo 850 T5 with N2P20FT Engine (49189-01400)
- 1996- Volvo 850 with N2P20FT, N2P20LT Engine (49189-01420)
- 1998~2005 Volvo C70 with B5204 T3 engine (49189-01450, 49189-01455)
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD04HL-21H (aka 21HR3)
Wheels Spec
Wheels Spec
- Compressor wheel: 51.6 / 65.0 mm (5+5 billet blades migrated from Honda Civic Type R Stage 2 Turbo TD04HLL1-05*21HR3-8.5)
- Turbine wheel: 45.6 / 52 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Universal rotated plate type
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: STD Volvo T3
- Outlet: straight flange type
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

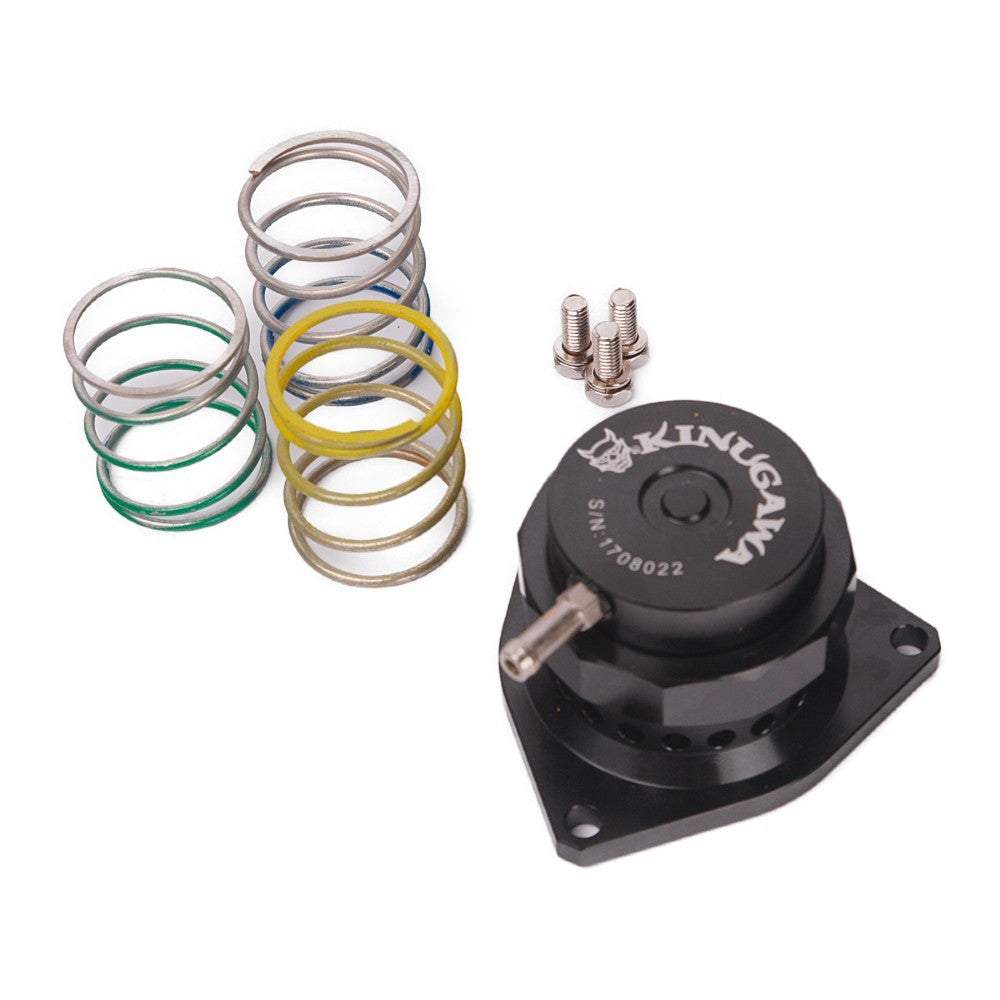

Valve Type - BOV / BCV
- Compressor cover has a factory BCV, that can change to an adjustable blow-off valve (BOV), or recirculating valve (BCV). (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (not included)
- 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.
- Universal rotated plate type
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: STD Volvo T3
- Outlet: straight flange type
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Valve Type - BOV / BCV
- Compressor cover has a factory BCV, that can change to an adjustable blow-off valve (BOV), or recirculating valve (BCV). (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (not included)
- 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Situation
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Situation
- Brand New
The Set includes
- 1 x Turbocharger
- 1 x Factory BCV, or adjustable BOV/BCV (3 options)
- 1 x Factory BCV, or adjustable BOV/BCV (3 options)
- 1 x Balance Report with Anti-Counterfeit Tags
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue
Select Valve Type
Select Compressor Wheel
Select Turbine Wheel
From $339.15
Original: $969.00
-65%Kinugawa Turbo TD04HL-21H 6cm Straight Flange for VOLVO 850 S70 V70 S80 97-—
$969.00
$339.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- The upgrade turbo for VOLVO 850/S60/S70/V70/XC70/C70/T5-R B5234/T3/T4/T6, B5254T/T2, N2P20FT, N2P20LT, N2P23FT, N2P23HT, N2P25LT with factory TD04HL-13G/15G/16T/18T and the adjustable-position plate compressor cover.
- Replace & Upgrade factory turbo #: 49189-01310, 49189-01320 (TD04HL-15G), 49189-01330, 49189-01335, 49189-01350, 49189-01355 (TD04HL-16T), 49189-01360, 49189-01365, (TD04HL-13G), 49189-01370, 49189-01375 (TD04HL-18T), 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435 (TD04HL-13T), 49189-01450, 49189-01455 (TD04HL-16T-6)
- 1998- Volvo S70 with N2P23FT Engine
- 1998- Volvo XC70 with B5254T Engine
- 1996- Volvo 850 with N2P23FT Engine
- Volvo S70, V70 T5, with B5234 Engine
- 1997- Volvo 850, C70 with N2P23HT Engine
- 1996- Volvo 850 Engine B5254T
- 1996- Volvo C70 I 2.4L T5 Engine B5254T
- 1996- Volvo S70 2.5L T5 Engine B5254T
- 1996- Volvo V70 2.5L T5 Engine B5254T
- 1998- Volvo S70, XC70 Car with B5254T2 Engine
- 1998- Volvo S60 T5, S70R, V70R with N2P23HTR Engine
- 2000- Volvo S60 with B2534 T4 Engine
- 1997- Volvo 850 T5 with N2P20FT Engine (49189-01400)
- 1996- Volvo 850 with N2P20FT, N2P20LT Engine (49189-01420)
- 1998~2005 Volvo C70 with B5204 T3 engine (49189-01450, 49189-01455)
- Replace & Upgrade factory turbo #: 49189-01310, 49189-01320 (TD04HL-15G), 49189-01330, 49189-01335, 49189-01350, 49189-01355 (TD04HL-16T), 49189-01360, 49189-01365, (TD04HL-13G), 49189-01370, 49189-01375 (TD04HL-18T), 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435 (TD04HL-13T), 49189-01450, 49189-01455 (TD04HL-16T-6)
- 1998- Volvo S70 with N2P23FT Engine
- 1998- Volvo XC70 with B5254T Engine
- 1996- Volvo 850 with N2P23FT Engine
- Volvo S70, V70 T5, with B5234 Engine
- 1997- Volvo 850, C70 with N2P23HT Engine
- 1996- Volvo 850 Engine B5254T
- 1996- Volvo C70 I 2.4L T5 Engine B5254T
- 1996- Volvo S70 2.5L T5 Engine B5254T
- 1996- Volvo V70 2.5L T5 Engine B5254T
- 1998- Volvo S70, XC70 Car with B5254T2 Engine
- 1998- Volvo S60 T5, S70R, V70R with N2P23HTR Engine
- 2000- Volvo S60 with B2534 T4 Engine
- 1997- Volvo 850 T5 with N2P20FT Engine (49189-01400)
- 1996- Volvo 850 with N2P20FT, N2P20LT Engine (49189-01420)
- 1998~2005 Volvo C70 with B5204 T3 engine (49189-01450, 49189-01455)
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD04HL-21H (aka 21HR3)
Wheels Spec
Wheels Spec
- Compressor wheel: 51.6 / 65.0 mm (5+5 billet blades migrated from Honda Civic Type R Stage 2 Turbo TD04HLL1-05*21HR3-8.5)
- Turbine wheel: 45.6 / 52 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Universal rotated plate type
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: STD Volvo T3
- Outlet: straight flange type
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Valve Type - BOV / BCV
- Compressor cover has a factory BCV, that can change to an adjustable blow-off valve (BOV), or recirculating valve (BCV). (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (not included)
- 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.
- Universal rotated plate type
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: STD Volvo T3
- Outlet: straight flange type
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Valve Type - BOV / BCV
- Compressor cover has a factory BCV, that can change to an adjustable blow-off valve (BOV), or recirculating valve (BCV). (Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of BOV/BCV spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (not included)
- 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Situation
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Situation
- Brand New
The Set includes
- 1 x Turbocharger
- 1 x Factory BCV, or adjustable BOV/BCV (3 options)
- 1 x Factory BCV, or adjustable BOV/BCV (3 options)
- 1 x Balance Report with Anti-Counterfeit Tags
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue
