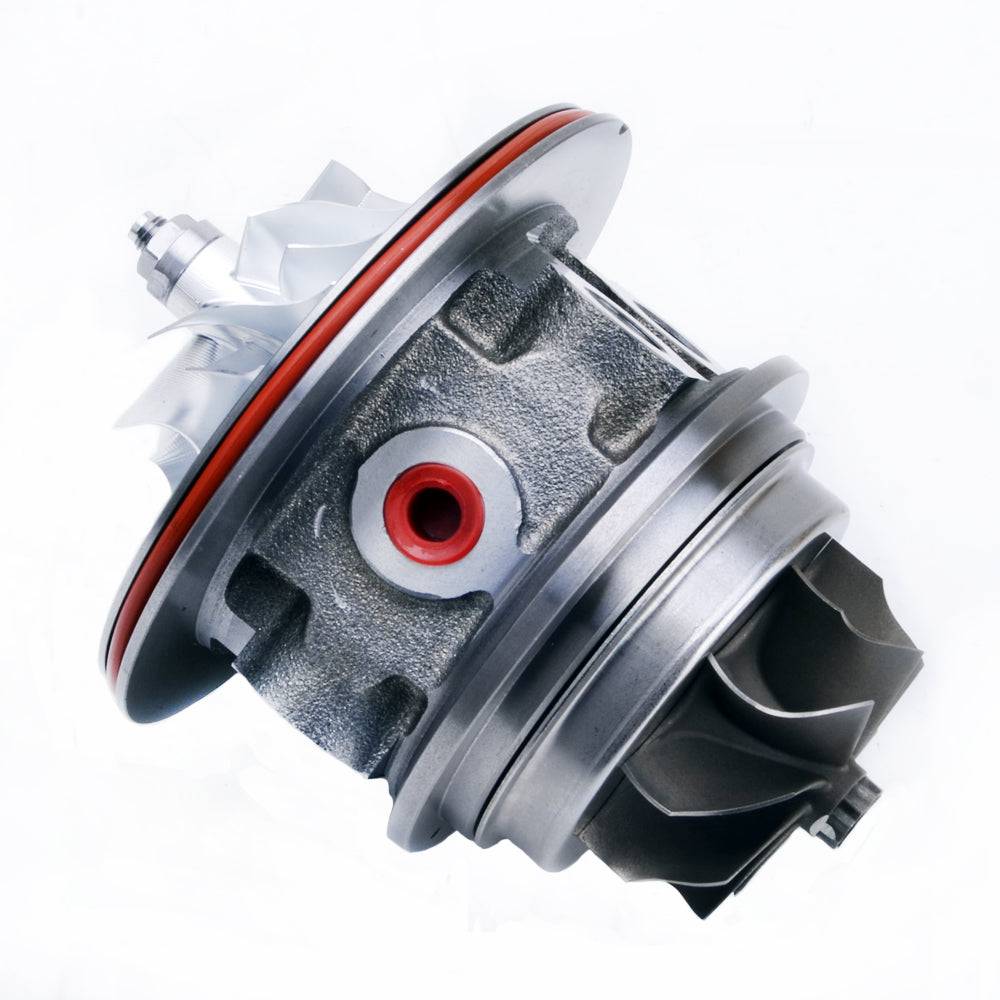

Kinugawa Turbo CHRA Cartridge TD06H-20G for SUBARU Liberty Legacy GT Forester XT WRX 08-
Application
- Kinugawa SUBARU TD06H-20G turbo
- Kinugawa SUBARU TD05 / TD06SL2 series turbo upgraded (compressor housing and turbine housing needs to be machined to fit the upgrade spec chra)
- Horsepower 450~490WHP

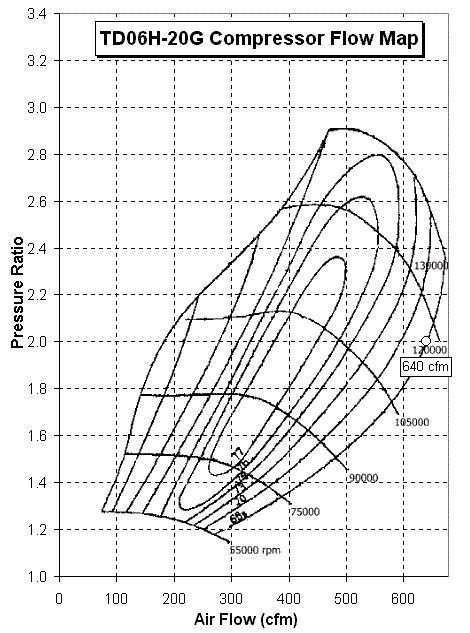

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06H-20G
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 67.0 / 58.8 mm (2 types available: STD, STS. Click here to learn more about STS technology.↗)
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#414-01101-005 + #416-01003-004*2)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
Warranty
- No
Select Compressor Wheel
Select Turbine Wheel
From $519.00
Kinugawa Turbo CHRA Cartridge TD06H-20G for SUBARU Liberty Legacy GT Forester XT WRX 08-—
$519.00
