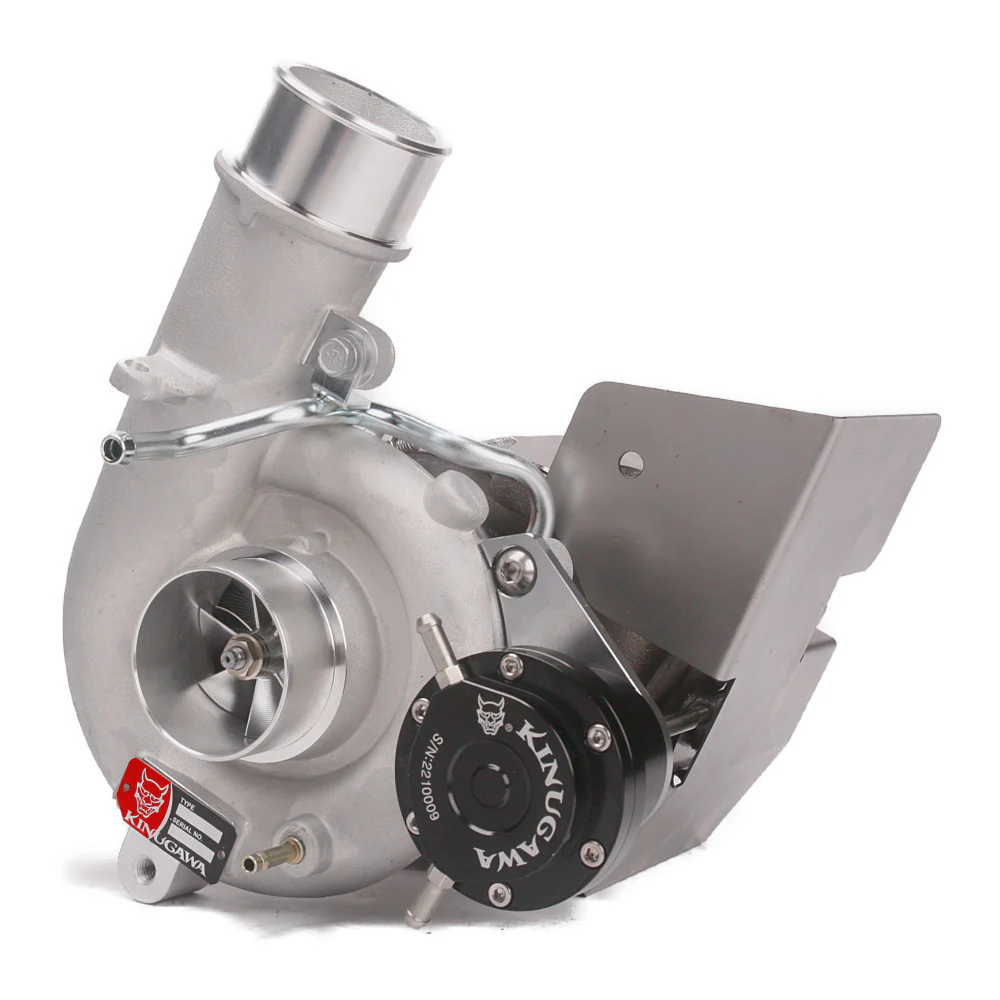

Kinugawa Turbo Ball Bearing TD05H-18G for MAZDA Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9

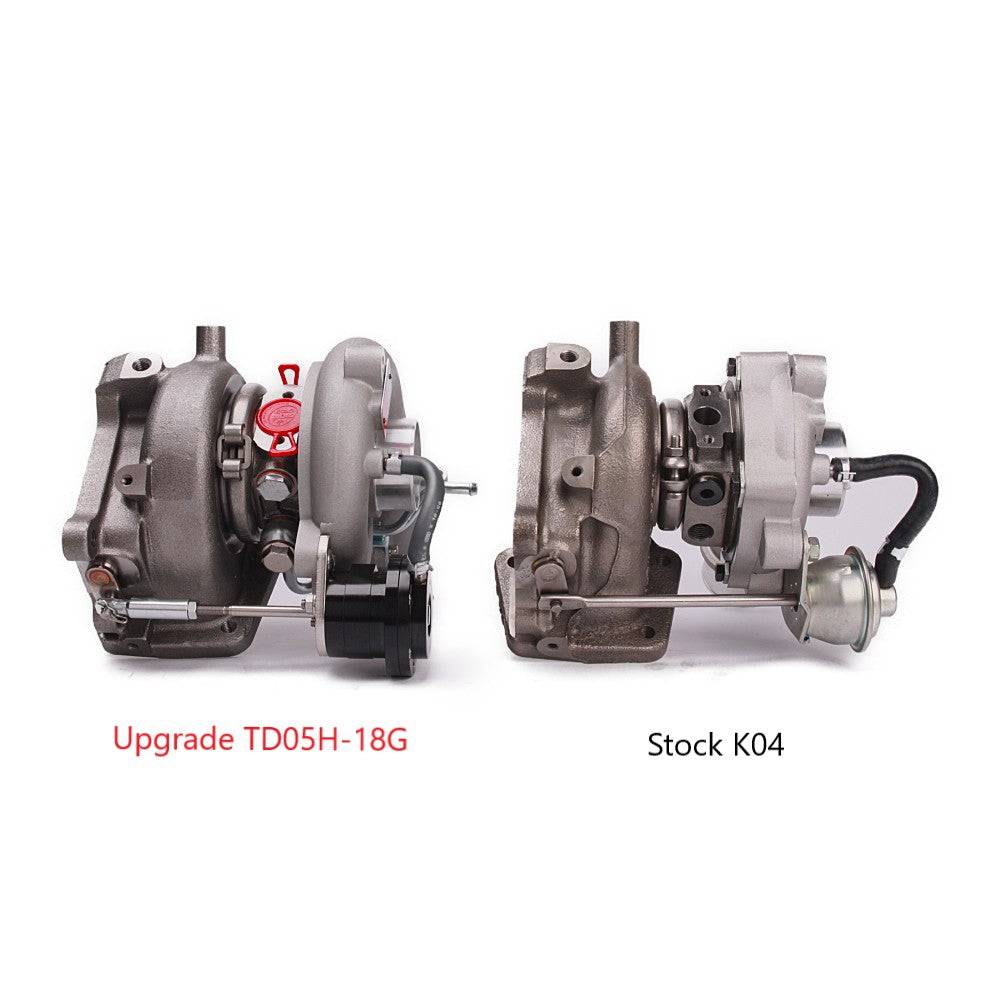

Faster spool, sharper response, longer service life — the Kinugawa Ball Bearing TD05H-18G is the premium upgrade for Mazdaspeed 3, Mazdaspeed 6, CX-7, and CX-9 MZR DISI 2.3L builders who want more than the journal bearing version. STS Advanced ceramic dual ball bearing technology improves boost build time by 10–15% and delivers improved shaft dynamics for greater durability. Up to 400 WHP on a healthy engine. Direct drop-in replacement for the factory K04.
APPLICATION
- Fits 2007–2013 Mazdaspeed 3 / Mazdaspeed 6 / CX-7 / CX-9 with K0422-881, K0422-882, K0422-883, K04-581, 582, 583 turbochargers
- Also fits: Mazda6 MPS / Atenza MPS, Mazda CX-7, Mazda3 MPS / Axela MPS, Mazda MPV (JDM)
Maximum power figures are based on compressor map choke flow (total turbo capability / flywheel potential). Actual results depend on vehicle modifications and tuning.
SPECIFICATIONS
CHRA SIZE
- TD05H-18G
WHEEL SPEC
- Compressor wheel: 50.3 / 68.0 mm
(6+6 blade = better low-end torque | 11+0 blade = top-end speed)
- Turbine wheel: 56.0 / 49.2 mm
Learn more about STS technology ↗
COMPRESSOR HOUSING
- Inlet: 2.25" | Outlet: 2.0"
- Larger A/R than stock — better for extended top-end speed

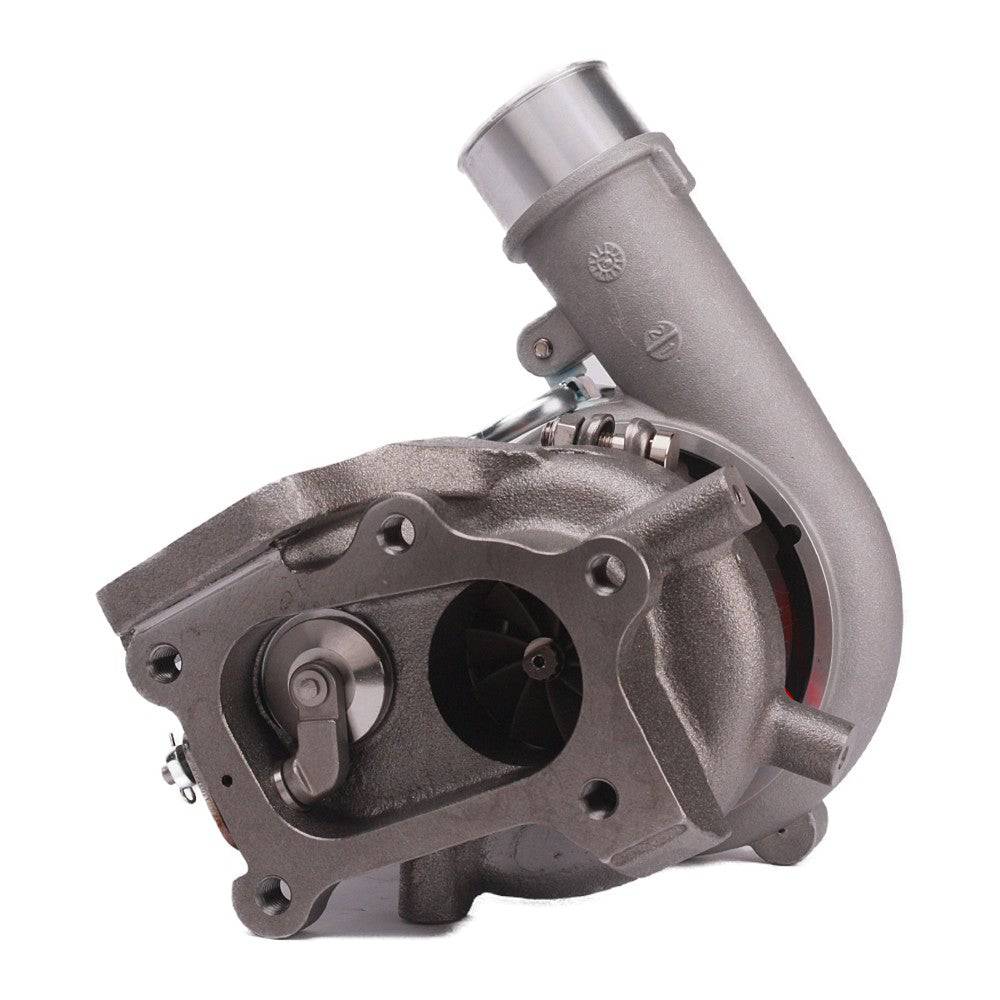

TURBINE HOUSING
- Bolt-on to the stock manifold and downpipe
- A/R .65 (9cm) — larger than stock, reduces backpressure for extended top-end speed
BEARING TYPE
- STS Advanced — Dual Ceramic Ball Bearing (10–15% faster boost response vs journal bearing)
COOLING
- Oil + water cooling system
ACTUATOR
- Default: 1.0 bar / 14.7 psi
- Custom options: 0.3 / 0.5 / 0.8 / 1.2 / 1.5 / 1.7 / 2.0 bar — add a note at checkout.

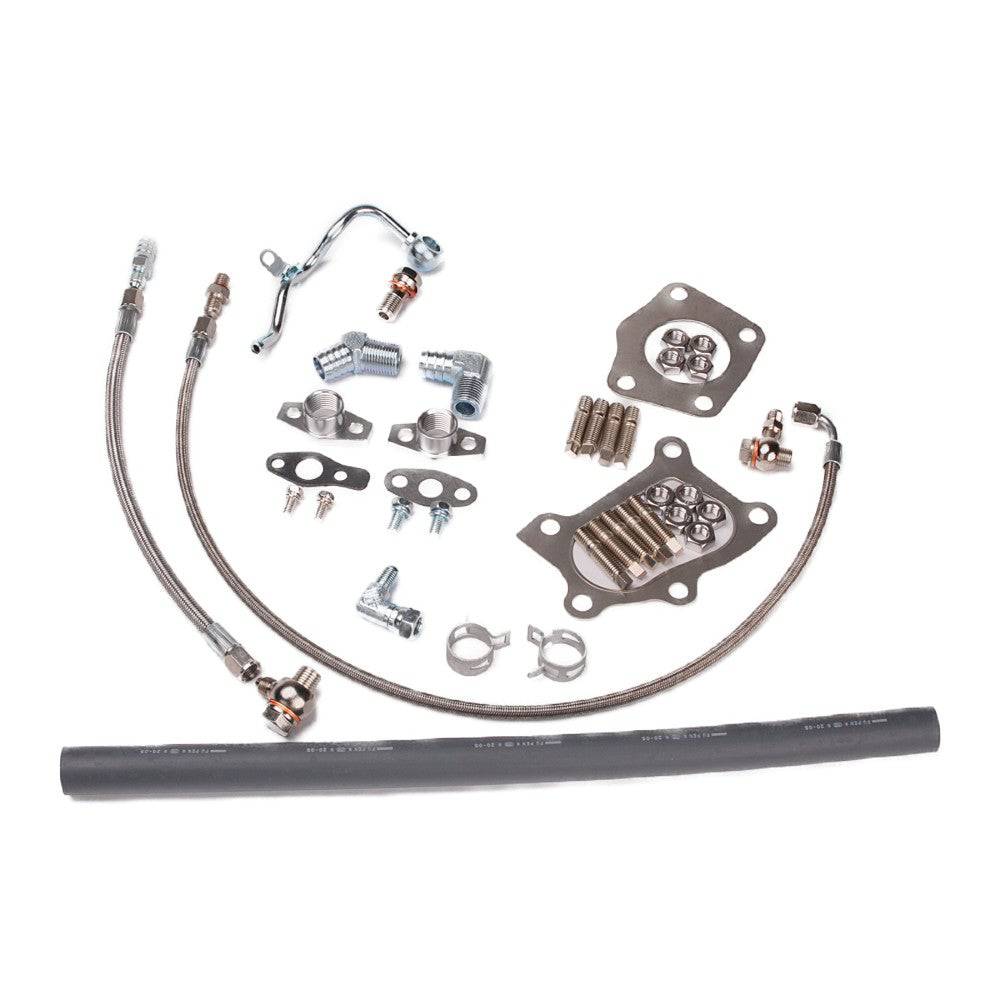

KIT INCLUDES
- 1× Turbocharger
- 1× Oil supply set
- 1× Water supply and return pipe set
- 1× Return oil pipeline
- 1× Turbine inlet and outlet gasket
- 9× Stud and nut set
- 1× Heat shield
- 1× Balance report with anti-counterfeit tag ↗
INSTALL GUIDE
CASE STUDY
WARRANTY
Kinugawa Turbo Systems offers a TROUBLE-FREE WARRANTY for 1 year from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement. Kinugawa has you covered — no matter the issue.
Provider: Kinugawa Turbo Systems | Condition: Brand New | Full balance from Schenk MBRS 110 Germany
