Kinugawa Turbo 3" TD05H-16G 6cm Fits DTS Toyota Land Cruiser 2H HJ47 HJ60 HJ75
Application
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ47
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ60
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ75
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ60
- TOYOTA Land Cruiser 2H 4.0L Diesel Engine HJ75
- Fits DTS TOYOTA Land Cruiser 2H conversion kit (Product Code: 2H DTS). Only bolt to the T3 manifold and 3-bolt dump pipe, except oil and water lines.
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 16G (48.3 / 68.0 mm) (Billet is better for higher boost pressure than 1.5 bar)
- Turbine wheel: 56 / 49.2 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Turbine Housing
- Nozzle area: 6cm^2 / AR.41
- Inlet: T3
- Outlet: DTS 3-bolt type to 3" v-band
- Wastegate: internal gated
- Inlet: T3
- Outlet: DTS 3-bolt type to 3" v-band
- Wastegate: internal gated
Bearing Type
- Journal Bearing with performance 360-degree thrust bearing kit.
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

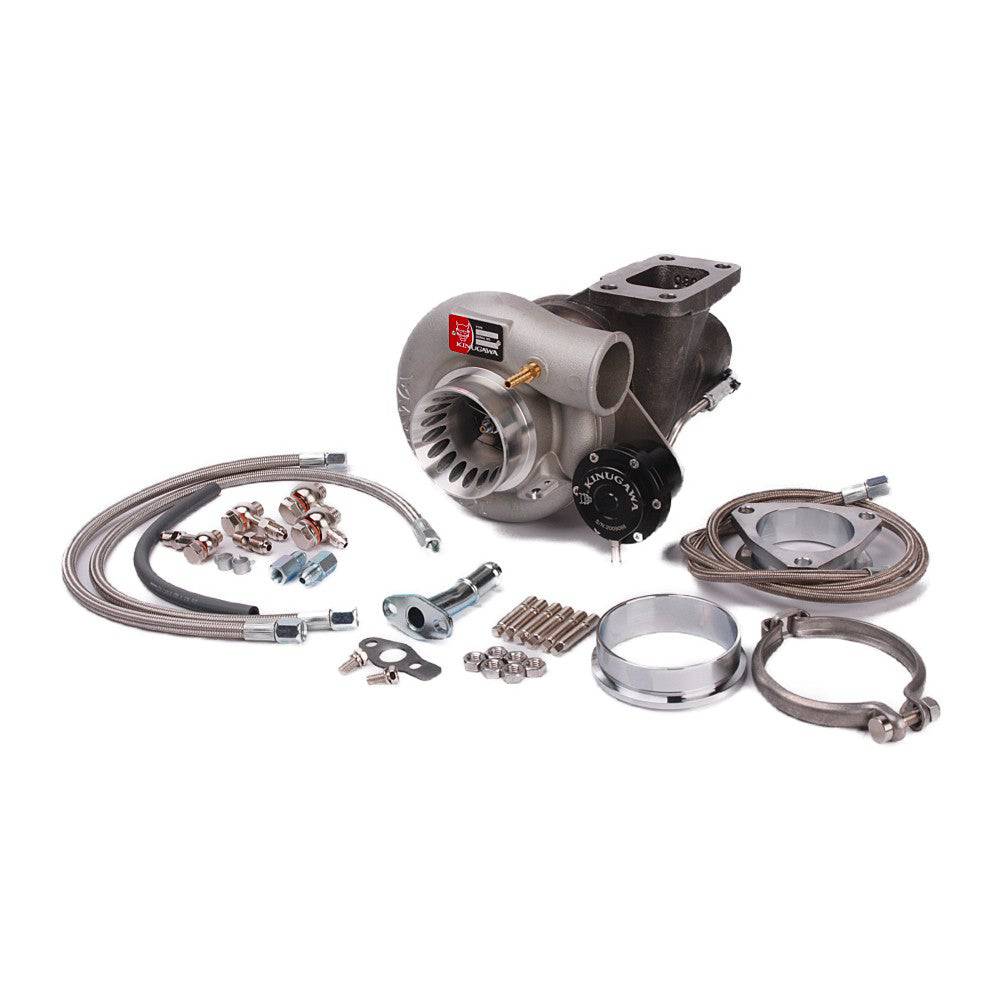

The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet gasket and v-band outlet adapter
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
