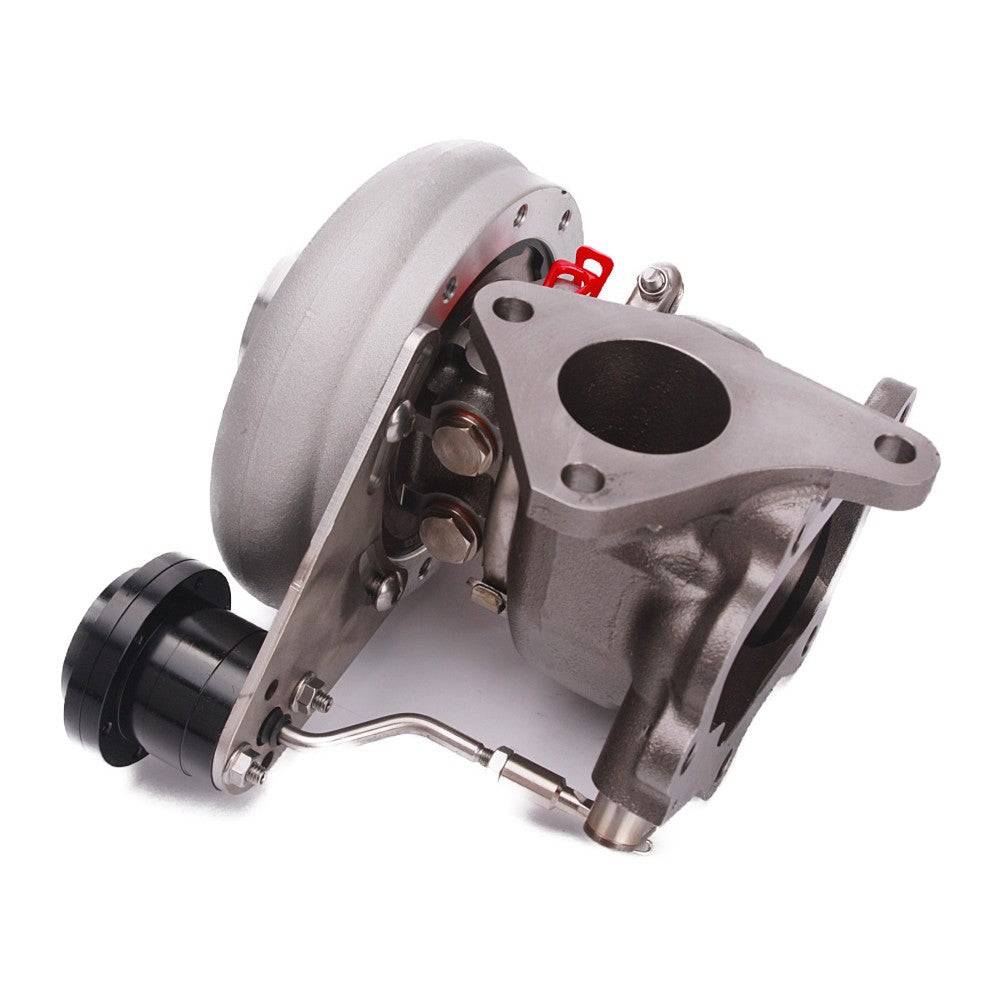

Kinugawa Turbo 2.4" TD06SL2-20G for Subaru Impreza WRX STI 2004-2020
Description
- This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The 20G billet compressor wheel utilizes its latest generation blades for the max flow rate of 40lb/min. This turbo can produce 400+whp with a built engine and supporting modifications.
Application
- For Subaru EJ20 EJ25 IMPREZA GC8 / GDA / GDB / GRB / GRF single-scroll turbo (Includes 2002-2007 WRX / 2004+ STi).
- Bolt for replacement of all WRX / STI td04l, IHI RHF55 RHF5HB VF22, VF23, VF24, VF28, VF29, VF30, VF34, VF35…, and MHI TD05/TD06 turbocharger with stock 2.4" Intake turbo.
- 2004-2020 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-20G
Wheels Spec
- Compressor wheel: 52 / 68 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 61 / 54 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 2.4"
- Outlet: 2"
- Cover has actuator bracket position rotation holes
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57; 10cm / AR.73
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: 2.4"
- Outlet: 2"
- Cover has actuator bracket position rotation holes
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57; 10cm / AR.73
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- Journal Bearing Systems with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling system
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
