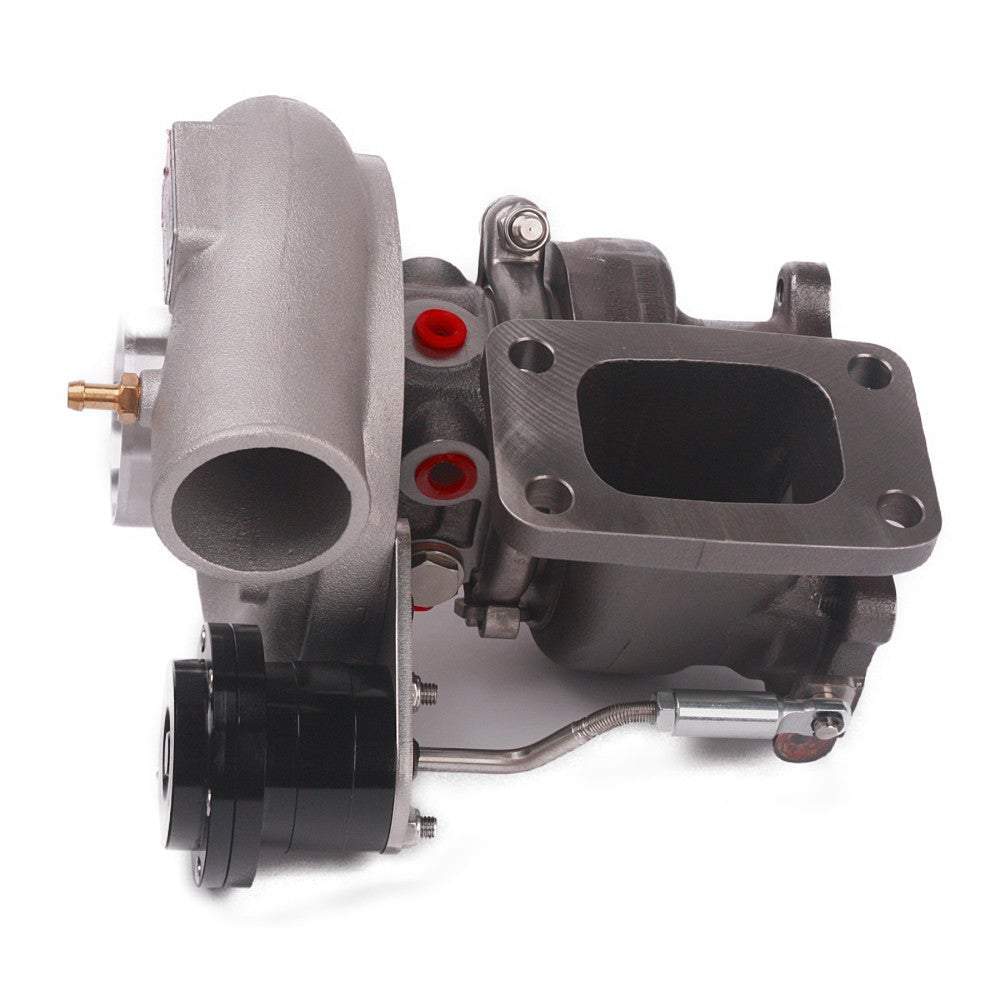

Kinugawa Turbo 2.4" TD05H-16G for Nissan RB20DET RB25DET R31 R32 R33 R34
Application
- For the Nissan RB20DET / RB25DET R31 R32 R33 R34 Skyline
- Universal application: 2000 ~ 3500cc
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 61mm / 2.4"
- Outlet: 51mm / 2"
- Inlet: 61mm / 2.4"
- Outlet: 51mm / 2"
Turbine Housing
- Nozzle area: 8cm / AR.57; 10cm / AR.73 (optional)
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
Bearing Type
- Journal Bearing with a 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
The set includes
- 1 x Turbocharger
- 1 x Oil set for oil supply
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
- 1 x Oil set for oil supply
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
[Install Kit Instruction]
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
