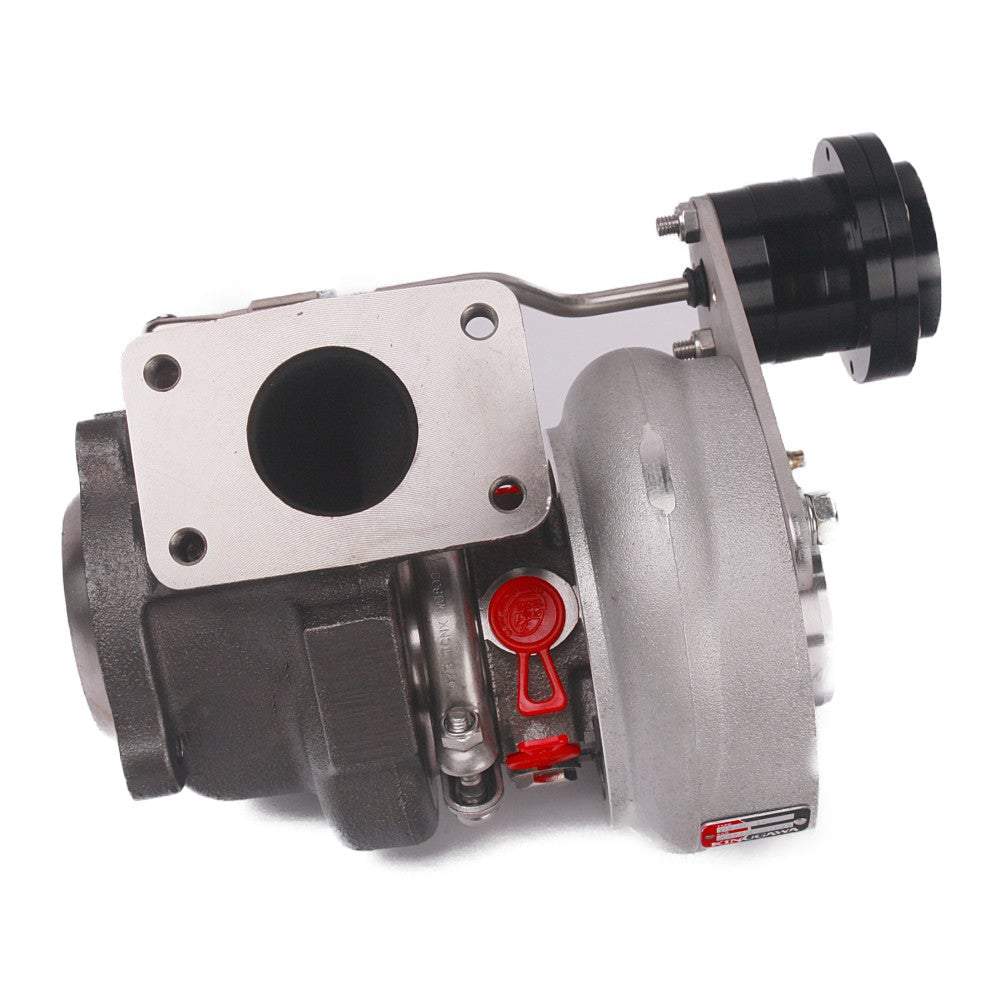

Kinugawa Turbo 2.4" TD04L-15T T25 for Nissan RD28T Diesel Conic Rear AR 5cm 6cm
Application
- 1.5~2L petrol engine
- 2.5~4L diesel engine
- For Nissan Y60 Patrol TD(Safari) 1982-1997 115HP RD28T Y60
- For Nissan Patrol 2.8 TD 1997-2000 year 129HP RD28TI Y61
- Horsepower Range: 220~300HP
// Note:
It is not a bolt-on type but you can rotate the direction by an actuator bracket. The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheel Spec
- Compressor Wheel: 42 / 56 mm (The 6+6 Blades is better for low-end torque and 11+0 is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm (Inconel 713)
(2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Inlet: 2.4" 60mm non anti-surge
- outlet: 2" 50mm
Turbine Housing
- Nozzle Area(2 Options): 5cm AR.33, 6cm AR.41
- Turbine Inlet: T25
- Turbine outlet: Conic type with 2.25" Flange Adapter
Bearing Type
- Journal Bearing
Cooling Type
- Oil and Water Cooled
Actuator
- 1.0 bar / 14.7 Psi is the default.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Actuator
- 1.0 bar / 14.7 Psi is the default.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

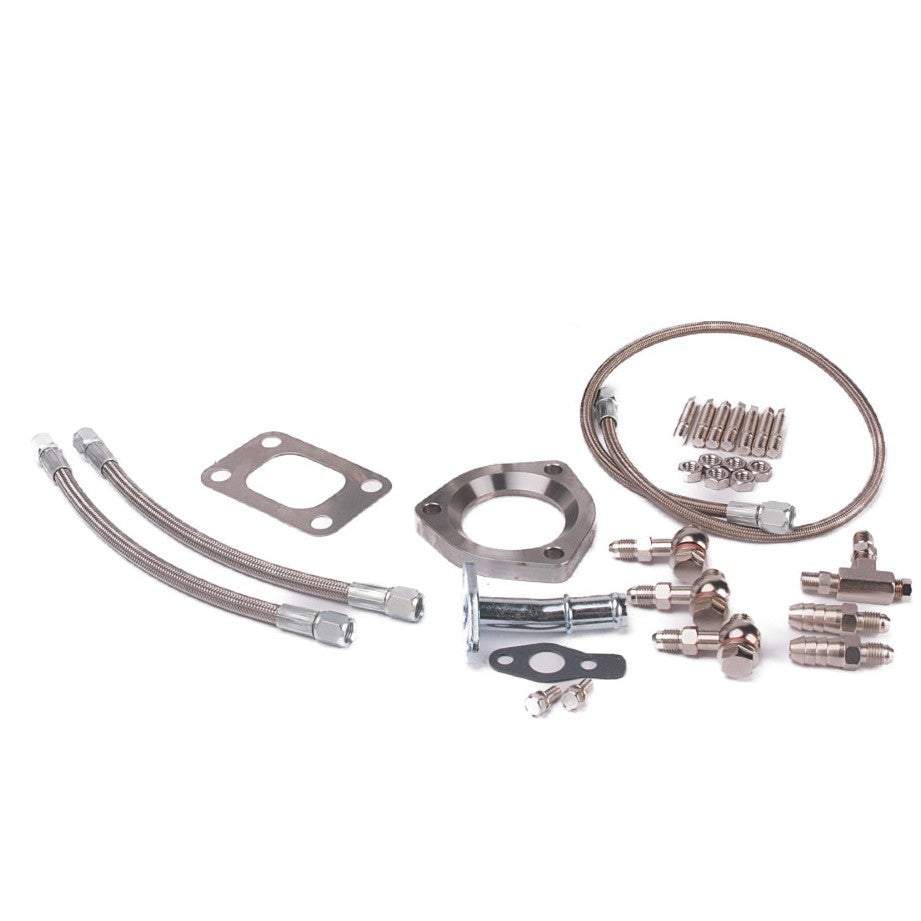

Kit Includes
- 1 x turbocharger
- 1 x oil feed line kit (70cm Oil Feed Line with 1/8PT Tee and 12mm Banjo Bolt Kit with 1.5mm restrictor to the turbo side.)
- 2 x water coolant feed and return line (25cm)
- 1 x turbine inlet t25
- 1 x oil return pipe kit
- 7 x stud and nut set
- 1 x tee fitting
- 1 x Conic Flange Adapter
- 1 x Balance report with anti-counterfeit tag
Product Situation
- Brand New
Supplier
- Kinugawa Turbo Systems
Warranty
- One Year
Select Compressor Wheel
Select Turbine Wheel
Select Turbine Housing
From $749.00
Kinugawa Turbo 2.4" TD04L-15T T25 for Nissan RD28T Diesel Conic Rear AR 5cm 6cm—
$749.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- 1.5~2L petrol engine
- 2.5~4L diesel engine
- For Nissan Y60 Patrol TD(Safari) 1982-1997 115HP RD28T Y60
- For Nissan Patrol 2.8 TD 1997-2000 year 129HP RD28TI Y61
- Horsepower Range: 220~300HP
// Note:
It is not a bolt-on type but you can rotate the direction by an actuator bracket. The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheel Spec
- Compressor Wheel: 42 / 56 mm (The 6+6 Blades is better for low-end torque and 11+0 is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm (Inconel 713)
(2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Inlet: 2.4" 60mm non anti-surge
- outlet: 2" 50mm
Turbine Housing
- Nozzle Area(2 Options): 5cm AR.33, 6cm AR.41
- Turbine Inlet: T25
- Turbine outlet: Conic type with 2.25" Flange Adapter
Bearing Type
- Journal Bearing
Cooling Type
- Oil and Water Cooled
Actuator
- 1.0 bar / 14.7 Psi is the default.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Actuator
- 1.0 bar / 14.7 Psi is the default.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Kit Includes
- 1 x turbocharger
- 1 x oil feed line kit (70cm Oil Feed Line with 1/8PT Tee and 12mm Banjo Bolt Kit with 1.5mm restrictor to the turbo side.)
- 2 x water coolant feed and return line (25cm)
- 1 x turbine inlet t25
- 1 x oil return pipe kit
- 7 x stud and nut set
- 1 x tee fitting
- 1 x Conic Flange Adapter
- 1 x Balance report with anti-counterfeit tag
Product Situation
- Brand New
Supplier
- Kinugawa Turbo Systems
Warranty
- One Year
