Kinugawa Turbo 2.4" TD04L 13T 15T 5cm T25 Internal Wastegate for Iveco Daily
APPLICATION
- 1.5~2L petrol engine
- 2.5~4L diesel engine
- Fits turbo part no. 49377-07000, Iveco Daily Commercial, Fait Ducato, Peugeot Boxer, Citroën Jumper 2.8L diesel engine 8140.43
- 230-280HP (13T 40.7/56 mm Trim 53) for Gasoline
- 250-320HP (15T 42/56 mm Trim 56) for Gasoline
- 2.5~4L diesel engine
- Fits turbo part no. 49377-07000, Iveco Daily Commercial, Fait Ducato, Peugeot Boxer, Citroën Jumper 2.8L diesel engine 8140.43
- 230-280HP (13T 40.7/56 mm Trim 53) for Gasoline
- 250-320HP (15T 42/56 mm Trim 56) for Gasoline
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
WHEEL SPEC
- Compressor Wheel: 13T (40.3/56 mm), 15T (42/56mm)
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 2.4" non anti-surge
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 5 cm^2 / AR.33
- Inlet: T25
- Outlet: 4-bolt Iveco style
- Wastegate: Internal gated
WHEEL SPEC
- Compressor Wheel: 13T (40.3/56 mm), 15T (42/56mm)
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 2.4" non anti-surge
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 5 cm^2 / AR.33
- Inlet: T25
- Outlet: 4-bolt Iveco style
- Wastegate: Internal gated
BEARING TYPE
- Journal Bearing
COOLING TYPE
- Oil and water-cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

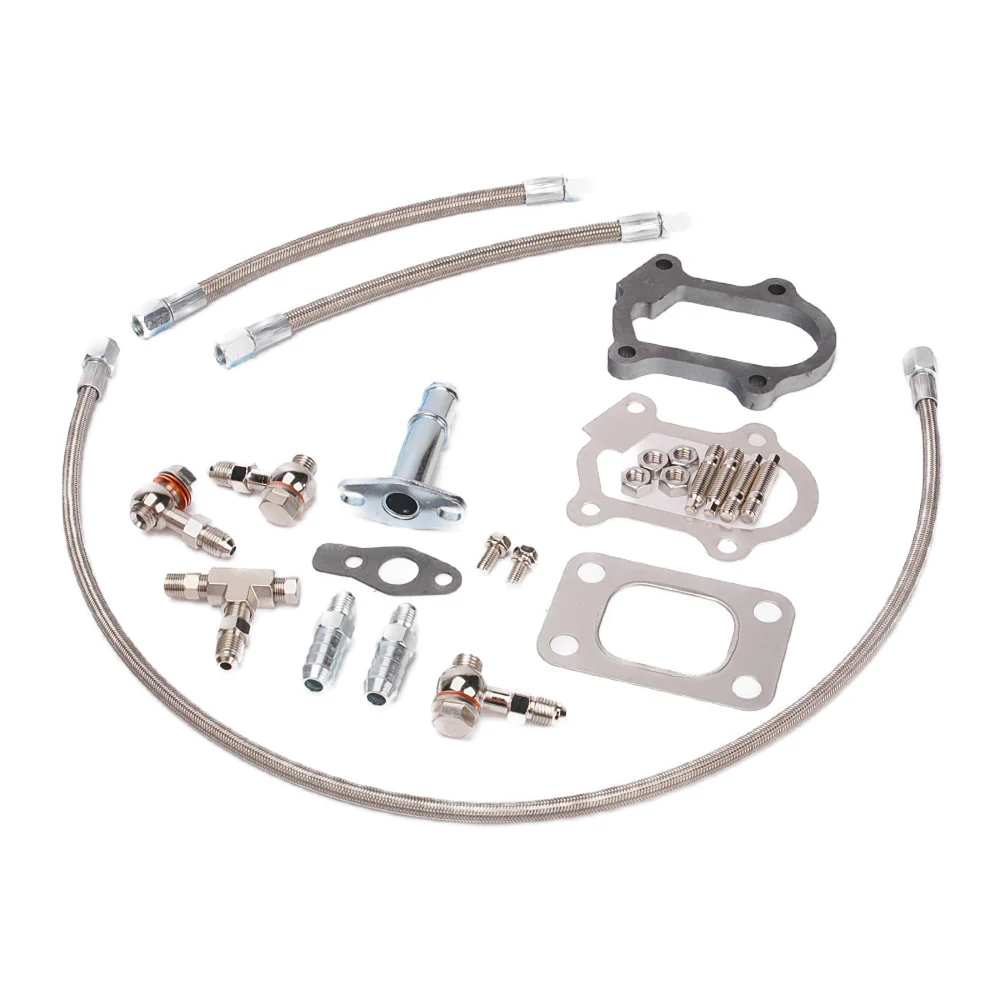

THE SET INCLUDES
- 1 x Turbocharger
- 1 x Oil feed line kit
- 1 x Water coolant feed and return line kit
- 1 x Turbine inlet and outlet gasket set with a flange adapter
- 1 x Oil return pipe kit
- 4 x Stud and nut set
- 1 x Tee fitting
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
For complete peace of mind, Kinugawa Turbo Systems offer a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from purchasing date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
